Instrument Calibrators

  Fluke 9144

Fluke 914X Series Field Metrology Wells

-25 degrees C to 660 degrees C, model dependant, temperature range

Display Accuracy plus/minus 0.35 degrees C

Optional built-in reference thermometer readout

Accredited Calibration

Optional process electronics built in two channel readout for PRT. RTD

thermocouple and 4-20mA current









Fluke P3000 Series Deadweight Testers

Pressure ranges to 20,000 psi (1400 bar)

0.015% of reading accuracy standard (0.008% optional)

Single or dual piston formats

Built-in hand pumps standard

Mounted spirit level with adjustable feet

Units can be trimmed to local gravity FOC



  Fluke 753


Fluke 753 Documenting Process Calibrator

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Measure and source with one compact, rugged, reliable tool
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
Three year warranty
Bright white display. Read both sourced and measured parameters.
Multi lingual interface
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1msec.
Standard delivered with DPC/Track2 Sample software. Compatible with many Asset
Management software packages






  Fluke 754


Fluke 754 Documenting Process Calibrator

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
Holds up to a full week of downloaded procedures and calibration results.
Three year warranty
Bright white dual display. Read both sourced and measured parameters simultaneously.
Multi lingual interface
Rechargeable NiMH battery for 10 hour uninterrupted use. Includes gas gauge.
Handling of fa st pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
Delivered with DPC/Track2 Sample software.
Compatible with many Asset Management software packages
Various Hart Capabilities







  DPC Track 2




Fluke 700SW DPC/Track Software

Fluke-700SW DPC/TRACK2 software includes an instrumentation data-base that
makes it easy to manage your instrumentation, create and schedule tests, print a variety of standard reports, and manage calibration data











  Fluke 725



Fluke 725 Multifunction Process Calibrator

Small, streamlined shape makes it easy to carry
Rugged, reliable design stands up to field use
Easy to read measure/source screen lets you view input and output simultaneously
Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Source mA with simultaneous pressure measurement to conduct valve and I/P tests
Support flow meter testing with frequency and CPM functions
Perform fast linearity tests with auto- step and auto-ramp features
Power transmitters during test using loop supply with simultaneous mA measurement
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms








  Fluke 725ex

Fluke 725 EX Intrinsically Safe Multifunction Process Calibrator

ATEX II 1 G EEx ia IIB 171DegreesC KEMA 04ATEX 1303X
I.S. Class I, Division 1 Groups B-D, 171DegreesC compliance
Measure Volts dc, mA, RTDs, thermocouples, frequency and ohms
Source or simulate Volts dc, mA, RTDs, thermocouples, frequency and ohms
Two channel simultaneous source and measure capability for calibration of transmitters
Power transmitters with internal loop supply
Store frequently-used test setups for later use
Pressure measurement to 3,000 psi/200 bar using any of the 8 intrinsically safe Fluke 700PEx
Pressure Modules, calibrate pressure transmitters and I/P devices
Pressure switch test function to capture set, reset and deadband values
Compact size and weight
Simple, push-button user interface
Rugged and reliable, for field use







  Fluke 726





Fluke 726 Multifunction Process Calibrator

More precise measurement and calibration source performance, accuracies of 0.01%.
Two separate channels; measure, source and view process signals simultaneously
Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
Measure or source pressure* using any of 29 Fluke 700Pxx Pressure Modules
Source mA with simultaneous pressure measurement to conduct valve and I/P tests
Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
Transmitter error% calculation, interpret calibration results without a calculator
Power transmitters during test using 24 V loop supply and simultaneous mA measurement
Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
New voltage input protection design for improved reliability







  Fluke 724



Fluke 724 Temperature Calibrator

Easy to read dual display lets you view input and output simultaneously

Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
Perform fast linearity tests with 25% and 100% steps
Execute remote tests with auto step and auto ramp
Power transmitters during test using loop power supply with simultaneous mA measurement
Store frequently-used test setups for later use
Compact, streamlined shape makes it easy to carry
Rugged, reliable design stands up to field use
Backlight lets you work in poor light
Large battery capacity of four AA cells
Battery door for easy change





  Fluke 712b



Fluke 712B Temperature Calibrator (RTD)

Measure temperature from RTD output
Simulate RTD output
Operates with seven types of RTDs
Measure additional RTDs using Ohms measurement function
Simulate additional RTDs using Ohms source function
DegreesF or DegreesC selectable
Four shrouded banana jacks
Compatible with Rosemount; pulsed RTD transmitters (pulses > 10ms)
Holster features test lead storage
Compatible with toolpack magnetic hanging system







  Fluke 714b



Fluke 714B Temperature Calibrator ( Thermocouple )

Measure temperature from TC output
Simulate TC output
Operable with nine types of thermocouples
Calibrate linear TC transmitter with mV source function
Selectable DegreesF or DegreesC
Thermocouple mini-jack termination
Available as accessories: Fluke-700TC1 and TC2 Thermocouple Mini-plug Kits
Holster features test lead storage
Compatible with toolpack magnetic hanging system







  Fluke 717



Fluke 717 Pressure Calibrator

Measure pressure, 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model)
Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power
Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules
1/8 NPT female pressure fitting
Compatible with non-corrosive Gases and liquids
Select eleven different engineering units
Zero, min, max, and hold functions
Calibrate P/I instruments with simultaneous pressure and current measurement
Pressure switch test function captures set, reset and Deadband values of a pressure switch
Error% calculation of mA measurements for quick pass-fail decisions









  Fluke 718



Fluke 718 Pressure Calibrator

Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
Error % calculation for quicker pass/fail decision making in the field
Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
Min/Max/Hold to capture changing measurements
Switch test feature for quicker and more accurate pressure switch testing
New 1 and 300 PSI pressure ranges mean fewer extra tools required
1, 30, 100 & 300 PSI ranges now available









  Fluke 718 ex



Fluke 718 Ex Pressure Calibrator

ATEX II
1G EEx ia IIC T4 Compliant.
Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve.
30, 100, and 300 psi ranges (2, 7, and 20 bar)
Pressure measurement to 0.05% of full span, using an internal pressure sensor.
Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
Wide range of selectable measurement units for pressure.
Current measurement with 0.02% accuracy and 0.001 mA resolution.
Pressure switch test function.
Min-Max Hold functions.
Compact size and weight.
Simple, push-button user interface.
Rugged and reliable, ideal for field us









  Fluke 719pro



Fluke 719PRO Pressure & Loop Calibrator

Electric pump for one handed pressure calibration

Best in class 0.025% accuracy pressure measurement accuracy

Programmable pump limit settings

Precision Vernier for fine pressure adjustment

Variable release rate bleed valve for controlled pressure release

Pressure Switch Test

Measure mA with 0.015% accuracy while sourcing 24V loop power

3 Ranges : 2bar, 10bar and 20bar

Precision temperature measurement with optional 720RTD Probe









  fluke 705

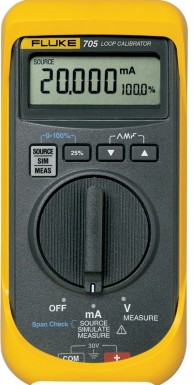

Fluke 705 Loop Calibrator

mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Compact case with separate protective holster
Three year warranty







  fluke 707

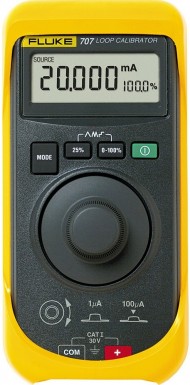

Fluke 707 Loop Calibrator

One handed user interface with `Quick Click` detented knob
mA sourcing, simulation and measurement
0.015% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure, including 250Ohms HART resistor
0-28 VDC measurement to check Loop Voltage
Easy battery exchange without opening the case
Compact case with separate protective holster
Three year warrant









  fluke 707ex

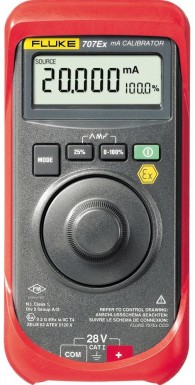

Fluke 707Ex Intrinsically Safe Loop Calibrator

Large display and simple, quick-click push rotary button for easy one-handed operation
Simultaneous mA and % readout for quick, easy, interpretation of readings.
mA accuracy of 0.015%, superior to other loop calibrators
1 Micro A resolution for mA source, simulate and measure
Push button with 25% steps for fast, easy linearity checks
0-100% `span check` for fast confirmation of zero and span
Internal loop supply, so you can power and read a transmitter at the same time
Measures Vdc to 28 V
Single 9 V battery that is easily changed
0-20 mA or 4-20 mA default start up modes
Innovative output adjustment dial with 1 Micro A and 100 Micro A resolution
HART; compatible resistance is connected in series with the loop supply for compatibility with HART communicators









  fluke 715



Fluke 715 Loop Calibrator

Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
Measure voltage output process signals from PLCs, transmitters
Source or simulate 24 mA loop current
Source voltage to 100 mV or 10V
24V loop supply with simultaneous current measurement
Enhanced voltage and current measure and source accuracy
Improved battery life
250 ohm HART resistor with loop power
Holster features test lead storage
Compatible with tool pack magnetic hanging system
Step and linear ramp output function
Configurable zero and span settings







  fluke 771



Fluke 771 mA Process Clamp Meter

Best in class 0.2 % accuracy
0.01 mA resolution and sensitivity
Measure 4 to 20 mA signals without `breaking the loop`
Measure mA signals for PLC and control system analog I/O
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Measurement Spotlight illuminates hard to see wires in dark enclosures
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically change the 4 to 20 mA output for remote testing
Power saving features, auto-off, backlight timeout extend battery life
Hold function captures and displays changing measurement









  Fluke 772



Fluke 772 mA Process Clamp Meter

Best in class 0.2 % accuracy
0.01 mA resolution and sensitivity
Measure 4 to 20 mA signals without `breaking the loop`
Measure mA signals for PLC and control system analog I/O
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Measurement Spotlight illuminates hard to see wires in dark enclosures
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Automatically change the 4 to 20 mA output for remote testing
Measure 4 to 20 mA signals with in-circuit measurement
Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
Source 4 to 20 mA signals for testing control system I/O or I/Ps
mA output linear ramp or 25% step output









  Fluke 773



Fluke 773 mA Process Clamp Meter

Best in class 0.2 % accuracy
0.01 mA resolution and sensitivity
Measure 4 to 20 mA signals without `breaking the loop`
Dual backlit display with both mA measurement and percent of 4 to 20 mA span
Detachable clamp with extension cable for measurements in tight locations
Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
Measure 4 to 20 mA signals with in-circuit measurement
Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
Source 4 to 20 mA signals for testing control system I/O or I/Ps
Automatically change the 4 to 20 mA output for remo te testing
DC voltage measurement to verify 24V power supplies or voltage I/O signals
Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals
Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
Voltage output linear ramp or 25% step outpu









  fluke 787





Fluke 787 Multimeter & Loop Calibrator

DMM and loop calibrator in one tool
Clear LCD with backlight; 4,000 counts (30,000 counts for dc current)
1000V overload protection on V, ohms, frequency.
25% Manual Step plus Auto Step and Auto Ramp on mA output
Measure ac and dc volts, ac and dc current, resistance, continuity, and frequency
0.1% dc voltage accuracy
0.05% dc current accuracy, 1 `A resolution to 30 mA
Simultaneous mA and % of scale readout
Frequency measurement to 20 kHz
Min/Max/Average/TouchHold/Relative modes
Diode test and continuity beeper
20 mA current source/simulator
Simultaneous mA and % of scale readout
Manual step (25%, coarse, fine) plus auto step and auto ramp









  fluke 789



Fluke 789 Multimeter and Loop Calibrator

24 V Loop power supply
Very large dual display
Enhanced backlight with 2 brightness settings
1200 Ohm drive capability on mA source
HART mode setting with loop power and a built-in 250 ohm resistor
0% and 100 % buttons to toggle between 4 and 20 mA sourcing for a quick span check
Externally accessible fuses for easy replacement
Infrared-port to process data in FlukeView Forms (V2.1) software ( Software not included )
Precision 1000 V, 440 mA True-RMS digital Multimeter
0.1% dc voltage accuracy
0.05% dc current accuracy
Simultaneous mA and % of scale readout
20 mA DC current source / loop calibrator / simulator
Manual Step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
Externally accessible battery for easy battery changes







  Fluke 700G ptp-1



Fluke 700PTPK2 kit & 700G Precision Gauge

Seven reference class gauge ranges

2bar, 7bar, 34bar, 69bar, 200bar, 340bar and 690bar

Atex rating : II 3G Ex nA IIB T6

Combined with 700PTPK2 pump kit for complete pressure testing solution

Three year Warranty
